Sunday, 9 March 2008

Shiny bits!

Well, yesterday was a first - a day in the garage where we didn't have to go out and buy tools or nuts and bolts!

In the last post I mentioned that we had been out to get the fuel flexis and clamps to fit out the car with. Now, it was time to mount it all up (wel, the rear end at least). We had ordered a spacing kit for the throttle bodies at the end of Jan, and it still hasn't arrived, so we're going to do it ourselves instead (when I say we, I mainly mean Ron).

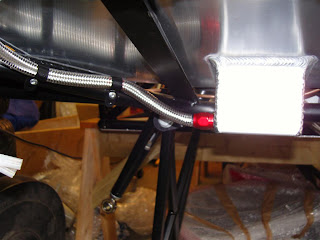

So, out we went with the drill and rivetter. We bought a right-angled drill from Screwfix the other week, and it's been brilliant, one of those tools you never thing you'll need till you get one! We started of with the flexi from the tank to the pump. Usefully, we mounted the pump on the opposite side of the chassis from the tank (thinking back, we did this because we were taking the loom the other way around the tank and wanted to keep them apart), so this meant we had to take the fuel flexi all the way across the back of the car, under the tank. Plenty of driling and rivetting, nothing very exciting.

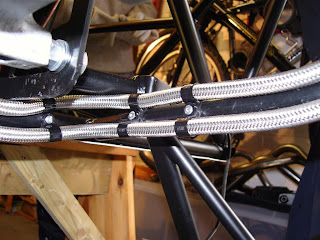

Next we had to figure out the pump to the copper line, and the return line as well. We figured out a route for them to meet, and then took them along a chassis rail together (P-clips turned with the centres towards each other, and one rivet through both). It all looks quite neat, I must be getting better at it!

Finally, we just had to mount the tank breather valve. This is a one-way valve to allow air into the tank as the pump sucks fuel out of it, but not let fuel out if you tip the car upside down. This was a bit awkward, as the pipe from the tank is 10mm, and the tail on the valve is about 6mm! Thsi meant we had to use an inline reducer and two bits of flexi. It's mounted to the rear stay out of the way.

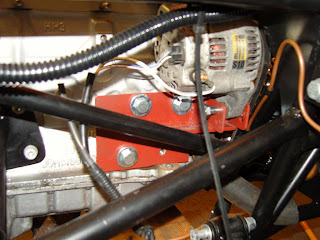

We also (had a productive day, didn't we?) trial-mounted the new alternator bracket Ron made for us. It fits nicely, and the alternator fits in well, even with the front exhaust manifold fitted, we just need to find a shorter belt, and work out the mounting for the alternator top mount it can be adjusted to tension the belt. There's not an awful lot of clearance (we can make a little extra by taking out a chunk of strengthening gusset from the chassis), so we need to get the belt as short as possible. Next we need to figure out the mounting points for the VR sensor, and the runs for the water hoses. It all gets a bit tight in there!

More updates and piccies to come soon!


Adam said...

Hi vinny, just wondering what tank breather you used as i need to get one for my R1 engined Vortx.

Vince said...

Hi Adam,

The breather came from Merlin Motorsport - there was a lot of blowing through it to make sure we fitted it the right way round! :)

Your build seems to be coming along nicely - you're spurring me on!

Adam said...

Thanks Vinny i'l give them a go. Mines not going too bad but a bit slow with all my uni work. Yours is looking pretty good to.
